Gallerie of the lighting:
We assure hereby that all pictures became to leave originals, except those, wich did not correspont to the reality. That means, that coult be done all photos so well it, realistically in brightness and color to be shown here! Where the SMD LED`s can be used everywhere, experience here.
For large picture click in the photos

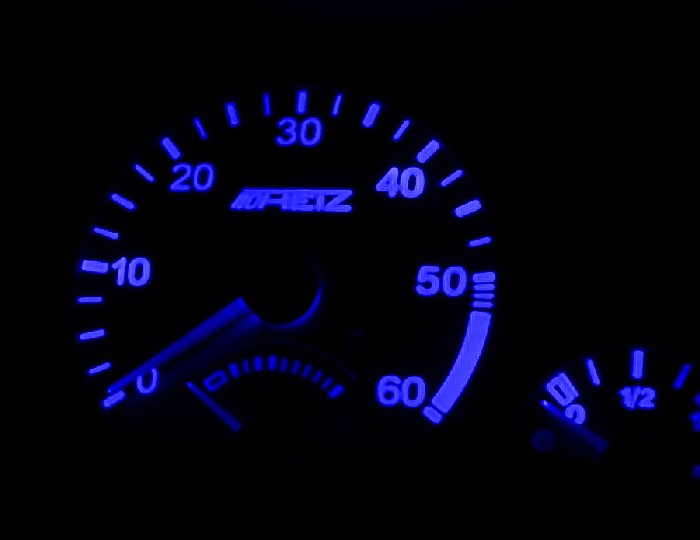

Alltempts (example) with Peugoeot 306 jear of construction 1999.Necessarily altogether are 10 SMD`s.
SMDs have compared with LED`s a reflected beam angle of 120°.Because they punctually do not shine as as LED (refeleted beam angle approx. 16-30°), are outstanding suitable for the change in the speedometer thewm. In the Golf 4 and 7er BMW are already used you for example for years.
Note !
All pictures to the copyright of the company HEIZ instrument design. The product is likewise protected and with marks and patent office registered as such. Dealer inquiries desiered.

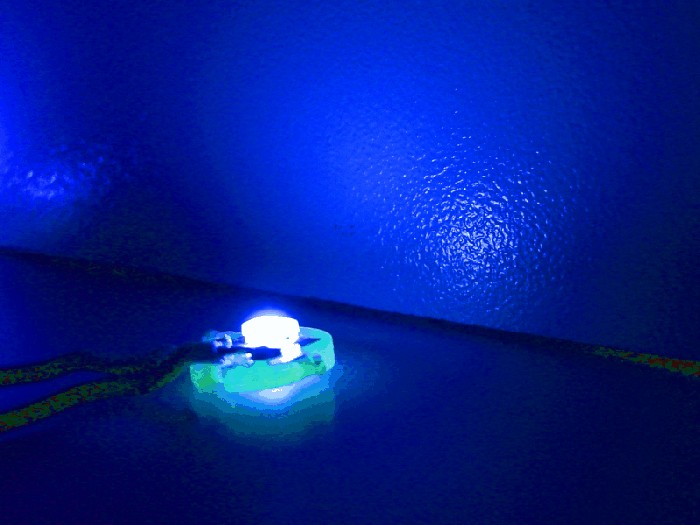

A SMD alone photographed made it already necessary to reduce the screen by-2 when photographing.
The bright light cone extends approx. 25cm highliy at a white wall. The entire room, in which on photographed, shone bluish.
With reproached speedometer dials can the light still otherwise distribute itself. However already 2 SMD`s was sufficient, in order to abtain a full illuinating..
Red SMD`s are still sharper in the brightness, as is will recognizable in the photo.

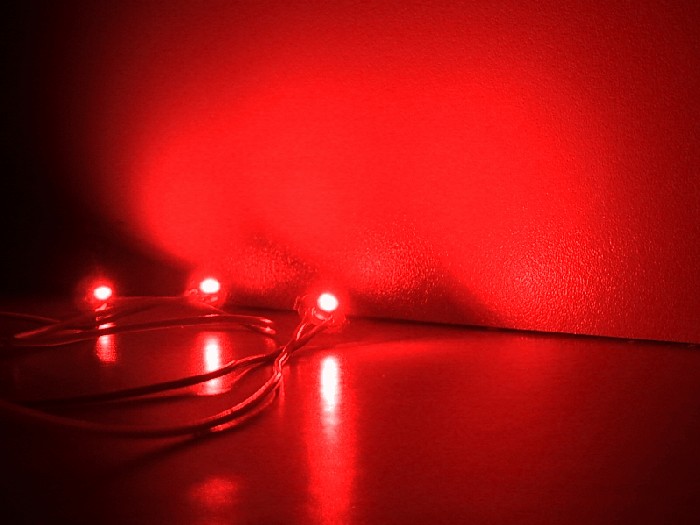

The light cone of the 3 red SMD`s extends approx.35cm highly at one white wall..
With reproached speedometer dials already 3 SMD`s was sufficient, in order to illuminate everything strongly red.
SMDs and your applicability:
Our SMD`s are either wired with pre-resistor (2er set in blue,3er set in red) or also individually and wiring available.
They are to be accommodated by the small structure height of 3mm and a diameter of 9mm nearly everwhere and naturally also in the interior for the floor space lighting or switch lighting suitably.
SMDs in the emplayment in vehicles, wich already blocked SMDs:

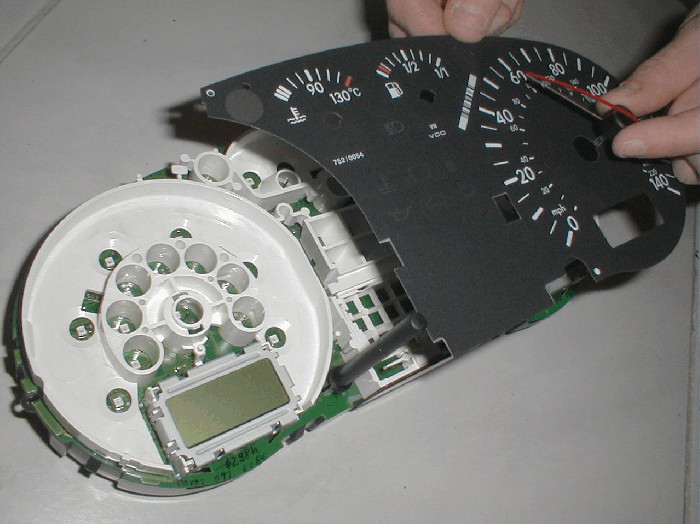

SMDs can be stuck in this case simply over the original.Example Golf 4.
A guidance, how the dials and pointers are removed, to have we for most vehicles ready.
SMDs use attach, completely.
Speedometer main header shining and dials in the alu look or in know for Golf 3 , Polo and Seat Ibiza with SMD LED technology!
Forget all plasma speedometer dials. Here the true Golf 4 look comes for the Golf 3. Both shown color combinations selectable.
Klick auf die Bilder

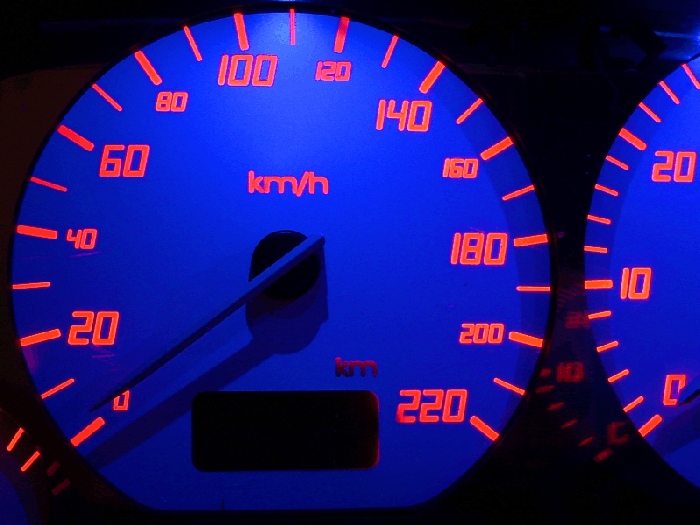

During the day the speedometer dials is white or in the alu look (selectable). At night then the Golf 4 effect comes. Blue or red transillumination.
Immediately also in 3/9 o`clock and with chrome surface available. Zhe illustration show, a converted Golf 3 speedometer with SMD technology and our popular chrome speedometer dials, attached at the lighting system.
Klick auf die Bilder
In connection with our chrome screen a 3 D effect develops, there the light inside on the plexiglass disk is refelected and on the chrome screen likewise !!
Click on the pictures
Golf 3 / Vento, Seat Ibiza
Conversation kit for Ford Focus
Speedometer dials in the original design with chromatic of shining surface and blue transillumination.
Now is it there:
The complete conversion kit for the Focus on Golf 4-light. Consisting of 6 very bright SMD LED`s and 4 LED`s for the pointer, our dial with whiter or aluminum surface (chrome 59 Euro surcharge) and blue transillumination.
Klick auf die Bilder !!
completely with blue transillumination and all necessary parts of only 134 Euro (white dials )
completely with blue transillumination and all necessary parts of only 169 Euro (white dials).
Mondeo new model
Immediately likewise for the new Mondeo available !!
Speedometer dials with blue or rewd transillumination, how the blue transillumination lights up supported with our SMD LED`s even more strongly blue than in the Golf4 !
The speedometer dials is for all models in stock(also diesel).Complete sets the inclusive SMD LED kit for the change on blue transillumination, including all parts and assembly instruction are likewise immediately available.
for example in white with red transillumination for only 74 EURO
Speedometer dial special fabrications/ small series
Tachofolien / Tachofolie kleben war gestern / white face gauges / fond fonds compteur witte wijzerplaten
HEIZ Tachodesign...........not simply, only differently
